LGMG AS0607W (AS1930E)
LGMG AS0607W (AS1930E)
Platform Specifications
| Max Working Height | 7.80m |
| Max Platform Height | 5.80m |
| Travel (H) (Rails raised) | 2.14m |
| Min (H) (Rails Lowered) | 1.84m |
| Lift Capacity | 230kg |
| Machine Width | 0.76m |
| Platform Width | 0.74m |
| Weight | 1610kg |
| Drive at Height | Yes |
| Deck Extension | Yes |
| Gradeability | 25% |
| Power | Electric |
| Manufacturer | LGMG |
Description

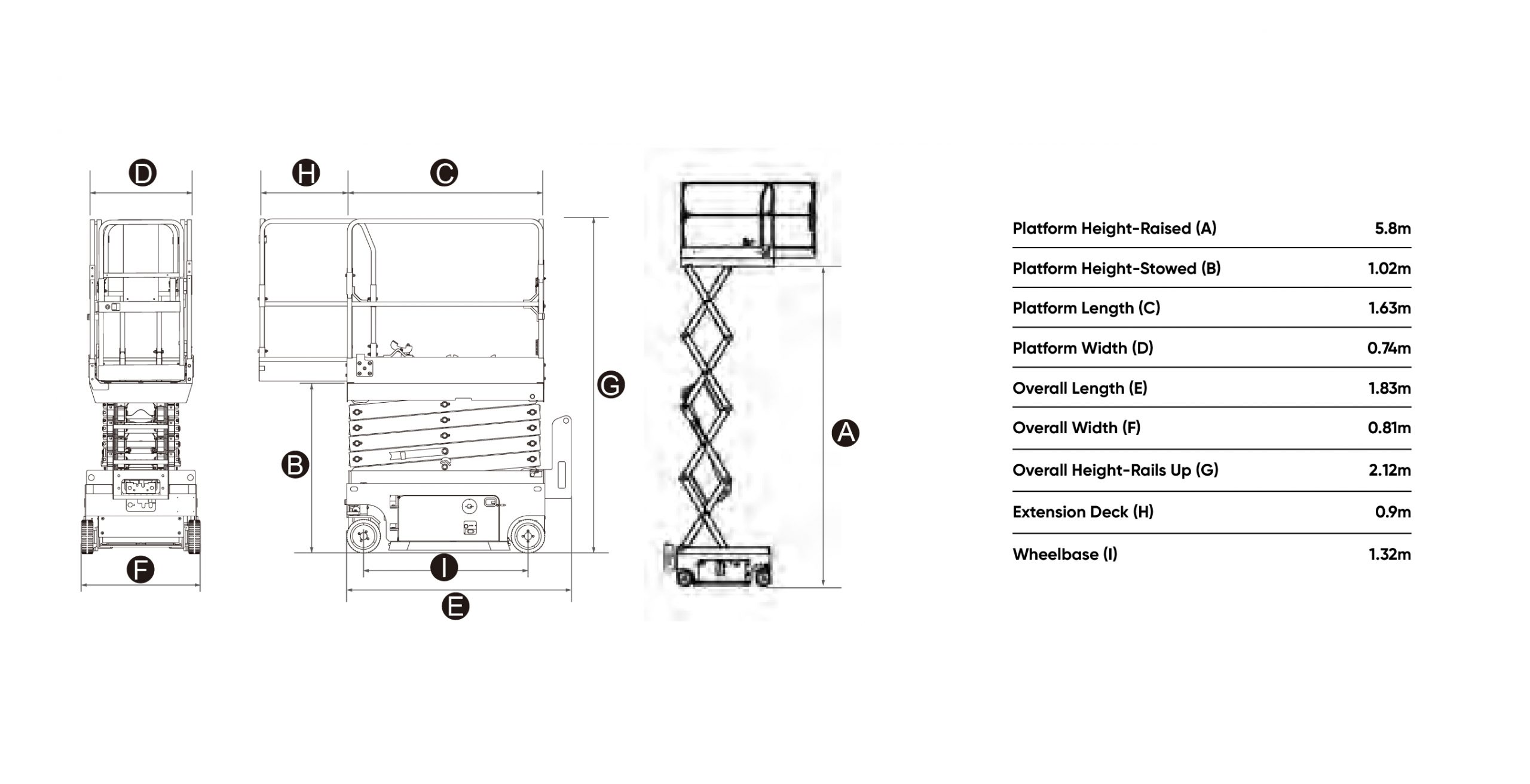

Working Diagrams
