PB S225-12ES
PB S225-12ES
Platform Specifications
| Working Height | 22.50m |
| Platform Height | 20.50m |
| Travel (H) (Rails raised) | 3.69m |
| Min (H) (Rails Lowered) | 2.91m |
| Lift Capacity | 450kg |
| Machine Width | 1.22m |
| Platform Width | 1.19m |
| Weight | 10,290kg |
| Drive at Height | Yes |
| Deck Extension | Yes |
| Gradeability | 25% |
| Power | Electric |
| Manufacturer | PB |
Description
Additional Information
An electro-hydraulic drive ensures even during long working cycles the necessary power reserves.
The PB S225-12ES is suitable for inner-city operations on common sidewalks and at tight spaces and a working height of 22,50 m.

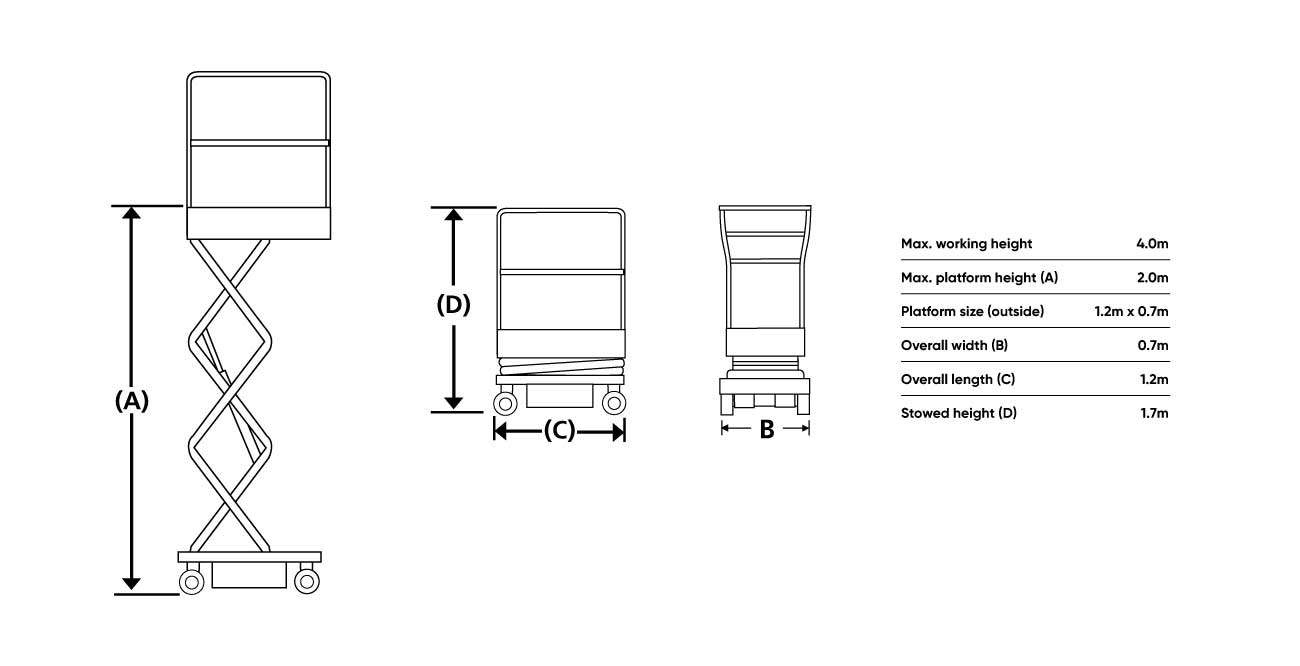

Working Diagrams
Key Features
Large Extendable Deck
Huge Working Height
Self-levelling PB Support System
Compact Dimensions
Suitable for Indoor and Outdoor Use
Precise Proportional Controls
