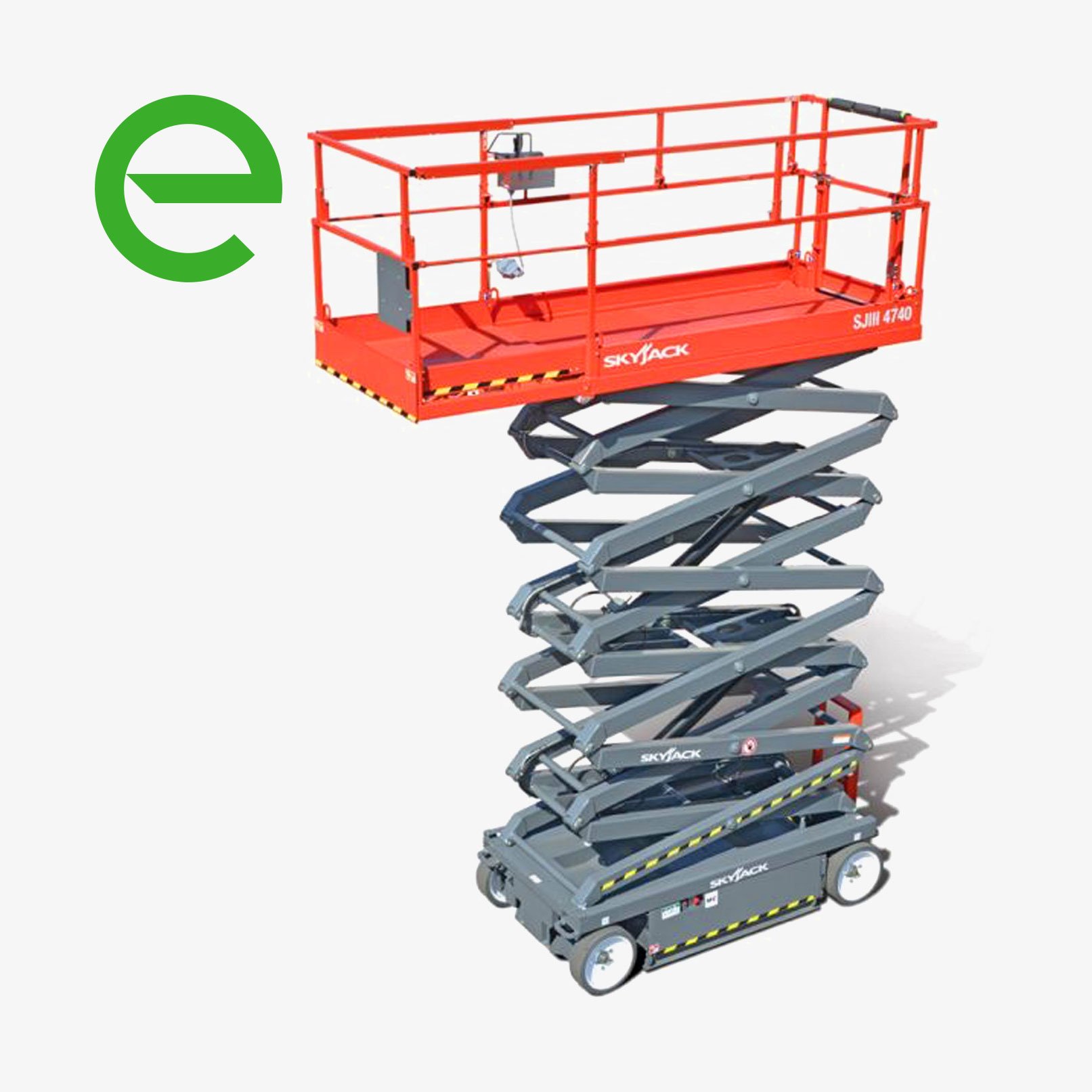

Skyjack 4740
Skyjack 4740
Platform Specifications
| Working Height | 13.8m |
| Platform Height | 11.8m |
| Travel (H) (Rails raised) | 2.48m |
| Min (H) (Rails Lowered) | 2.21m |
| Lift Capacity | 227kg |
| Machine Width | 1.19m |
| Platform Width | 1.06m |
| Weight | 3393kg |
| Drive at Height | Yes |
| Deck Extension | Yes |
| Gradeability | 25% |
| Power | Electric |
| Manufacturer | Skyjack |
Description
Additional Information
Trusted, easy to service, low maintenance design.
Complete with front wheel drive, fast and effective emergency lowering, pothole protection and serviceability.

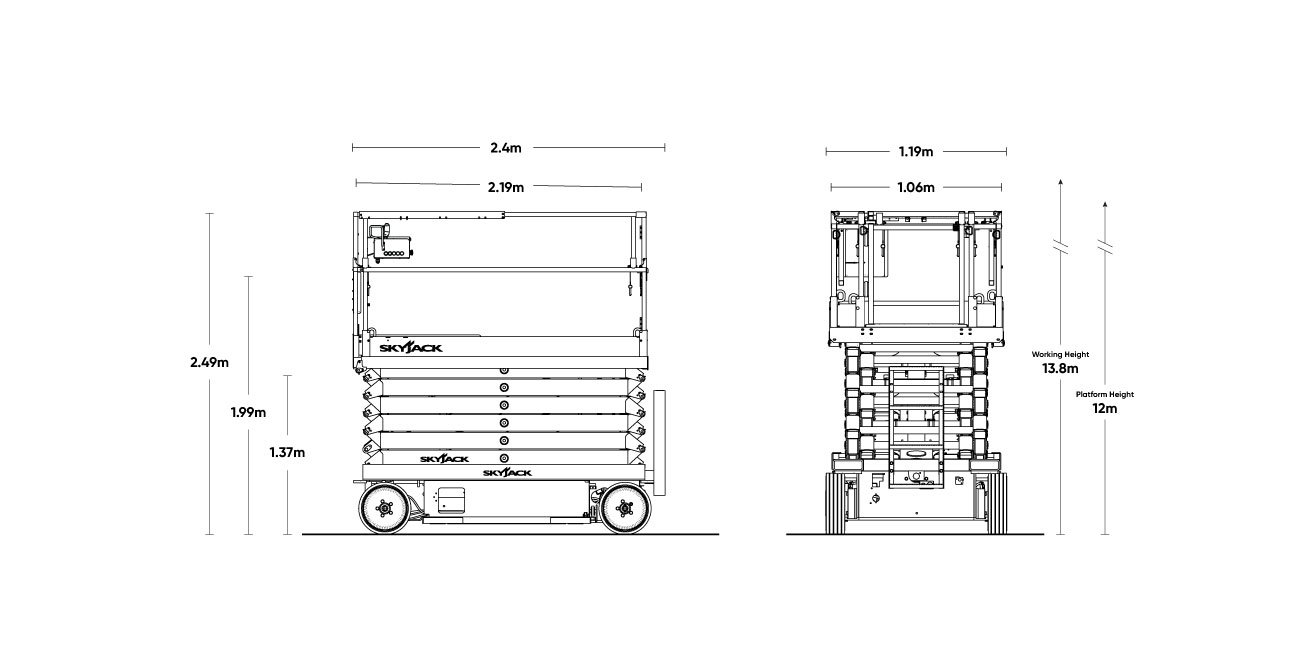

Working Diagrams
Key Features
Smart Link Control System
Suited to Narrow Spaces
Easy to Manoeuvre
Drive at Full Height
Deck Extension
Solid Non-marking Tyres
